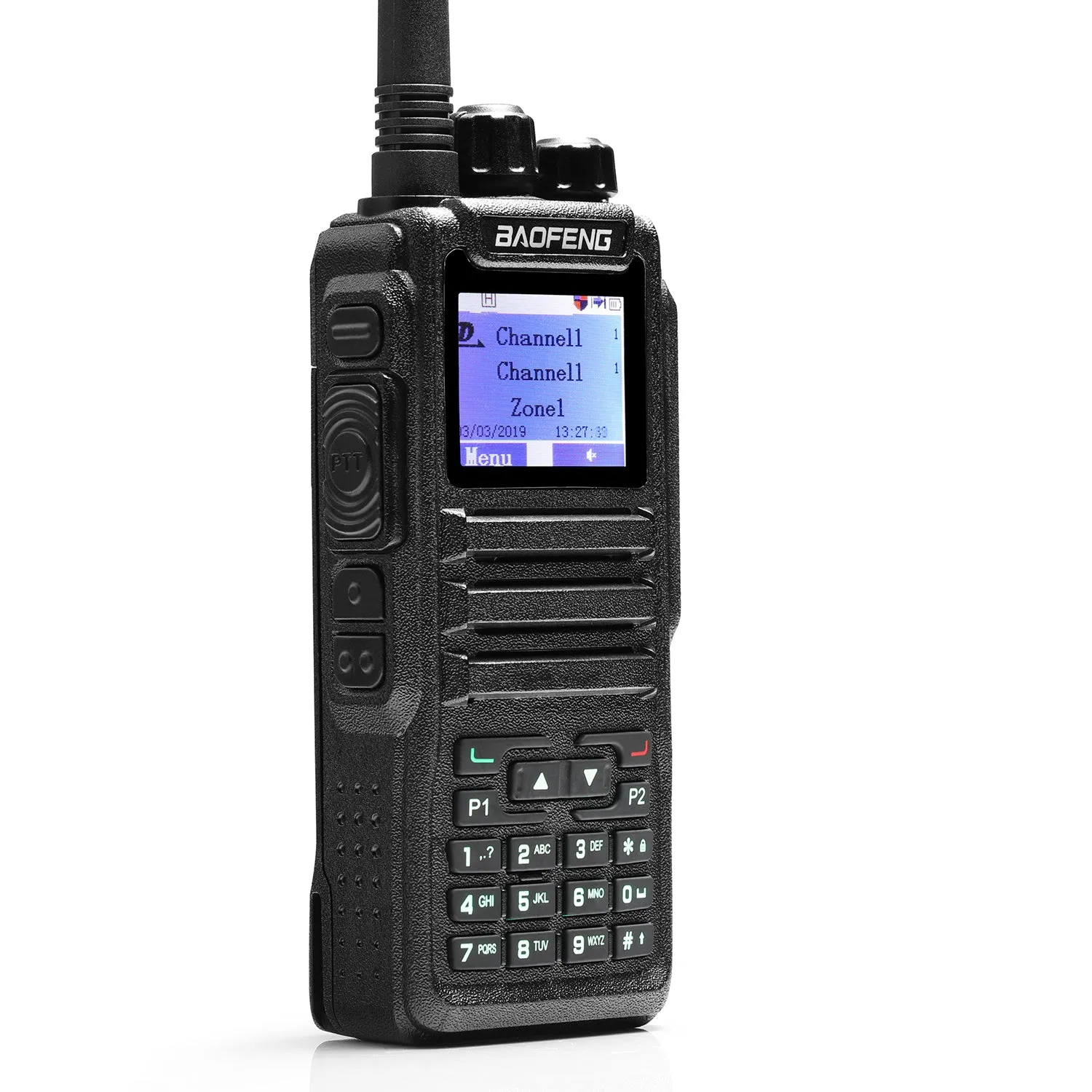

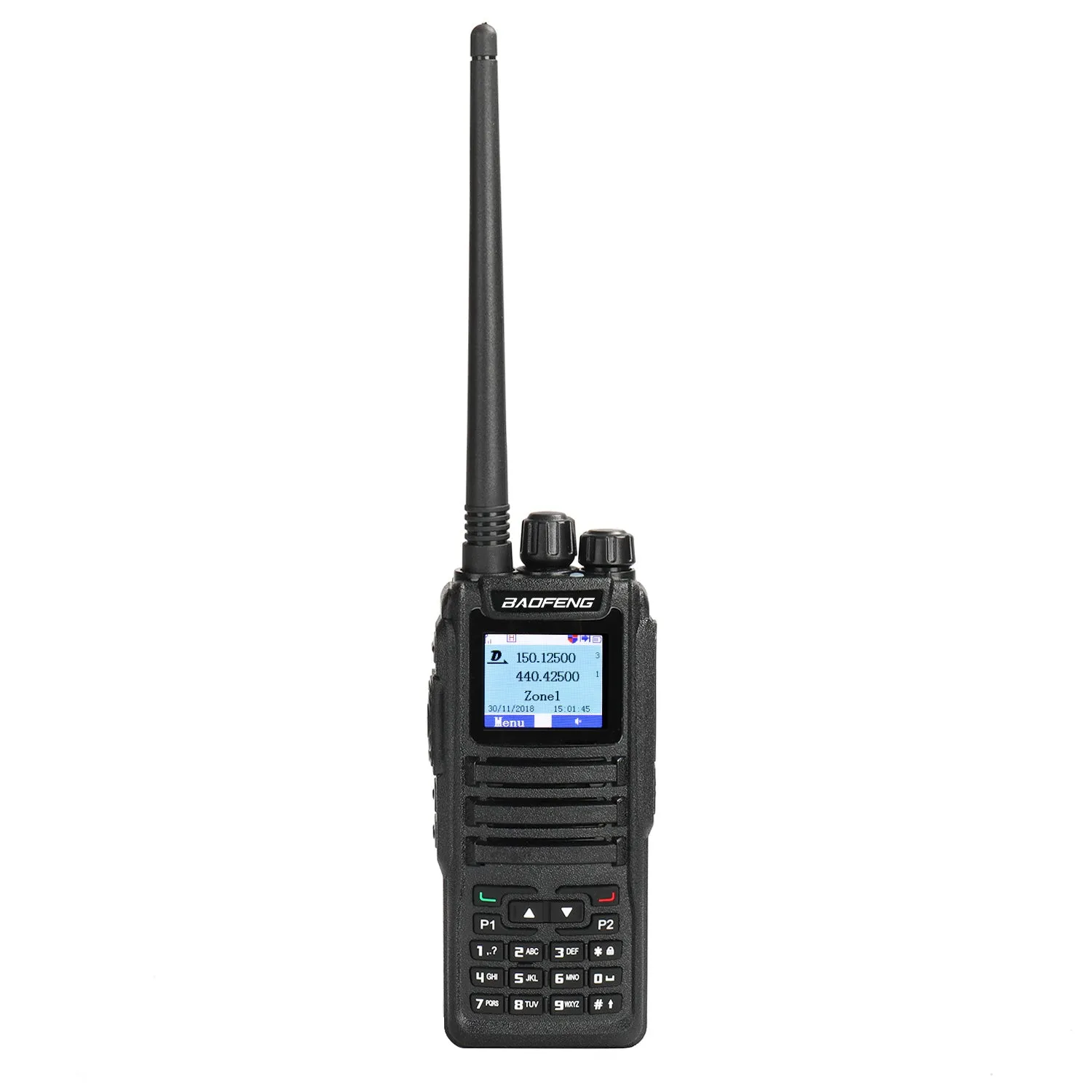

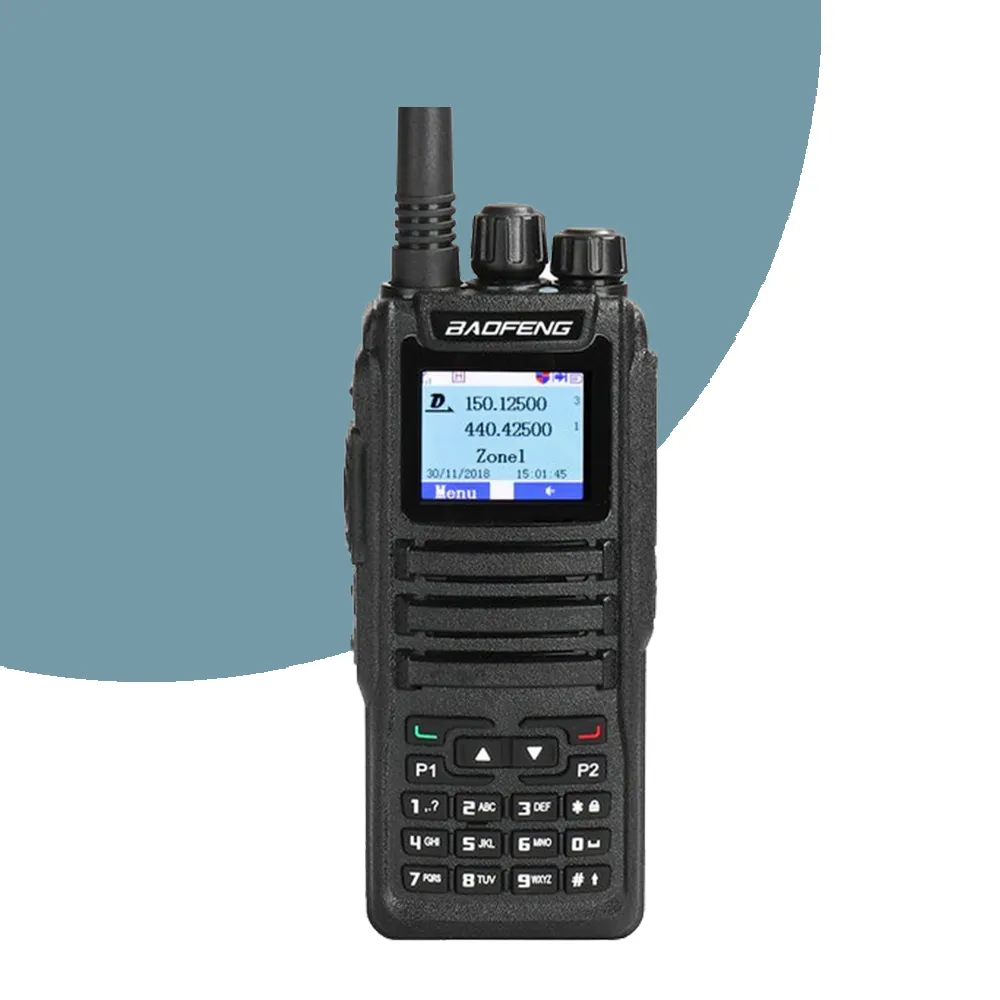

About Baofeng DM-1701

The DM-1701 is the most cost-effective DMR HT on the market, with solid hardware construction and easy to use programming software. The greatest appeal of Baofeng’s DM-1701 lies in its ability to deliver great DMR compatibility, crystal clear audio & great cost-effective. The light-weight portability, high capacity battery, and user-customizable design all make it the perfect radio for both experienced and new HAM users. Please follow and subscribe Radioddity.com, we will send notification if there are any updates. The firmware version is V02.01 & software version is V1.03, both are the latest provided by Radioddity only. The latest radio programming software and firmware are also available on our website.

Users can apply the [.rdt] template file that saves all the custom settings to the radio through CPS. The DM-1701 template can be used with the MD-380/MD-2017/MD-9600

To program Baofeng DM-1701, please to the guidance.

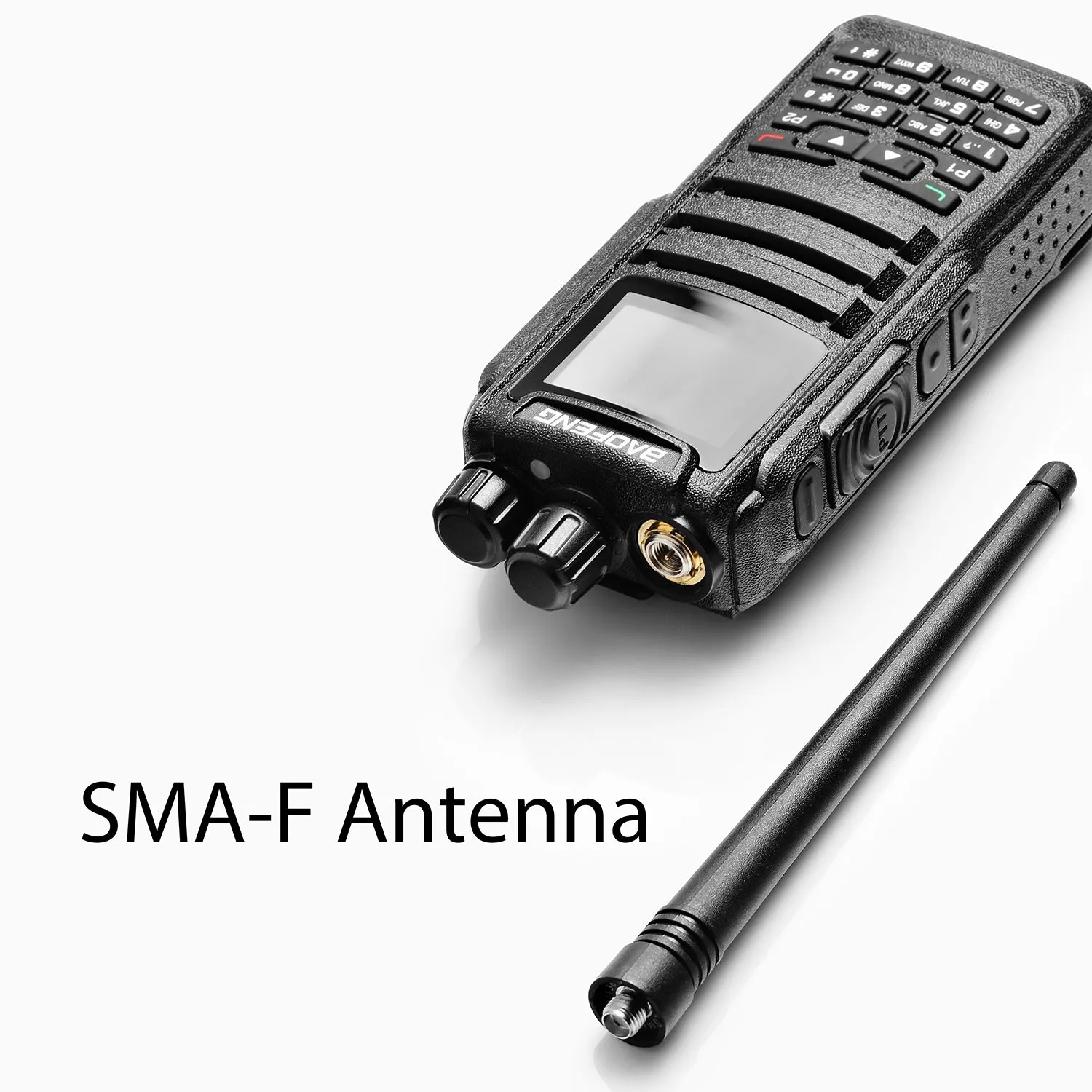

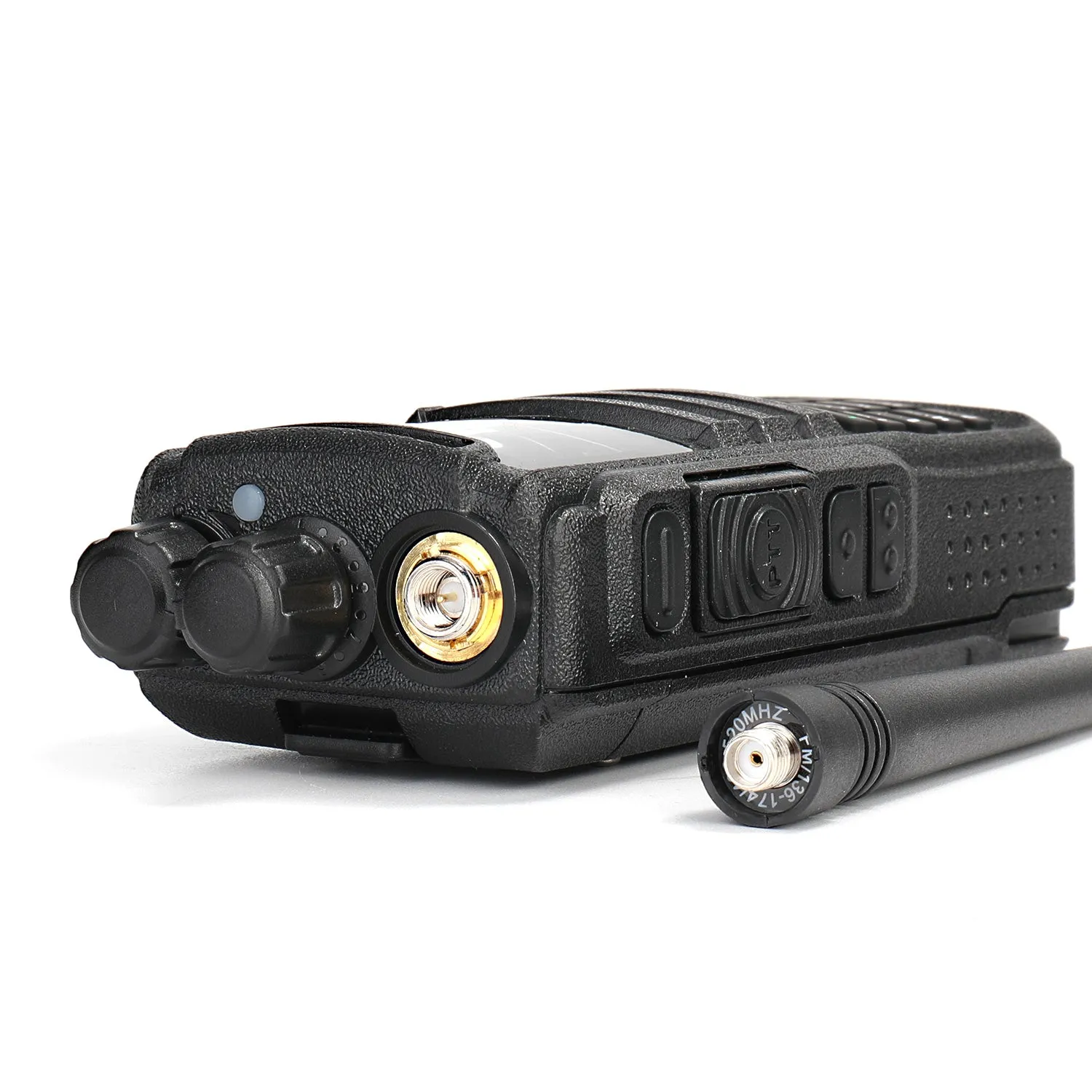

✧ SMA-Female Antenna (Backward Compatible with SMA-Female Antennas)
✧ 2-Pin K-plug port for most radio accessories, compatible original Baofeng accessories and Radioddity antenna, PTT speaker Mic, etc.
✧ USB Programming Cable Included - Windows PC Required
✧ Firmware Upgradeable
　

Why is our BAOFENG DM-1701 DMR different:

Multiple communication efficiency
The DM-1701 offers a large storage with 3,000 Channels, 10,000 Talk Groups and 120,000 Contacts. Channel selection can be switched by top rotate knob or input channel number by keypad. CPS supports mass editing on channels and contact IDs, importing and exporting them with CSV format, which makes it easier to write code-plugs and more complex application requirements.

Strong digital function
The DM-1701 is DMO True2-slot DMR, it not only supports DMR protocol, including single call, group call and all call; it also supports two way radio detection, call alert, remote monitoring, remote inhibit/kill and SMS Data transmission function. Digital alarm function and encryption are also available, encryption only supports calling between the DM-1701 devices. In digital mode, you can monitor the color code, time slot, frequency and contact ID.

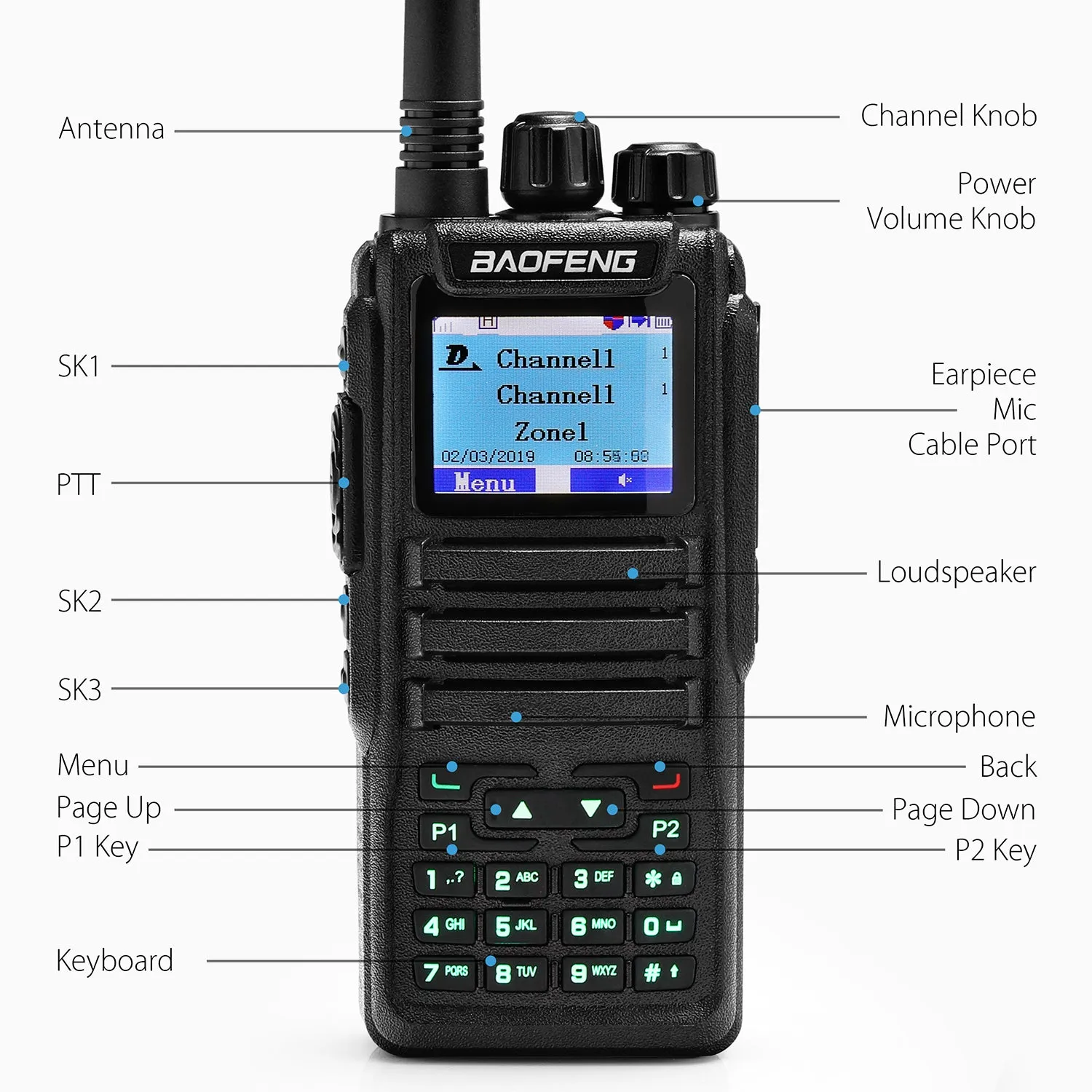

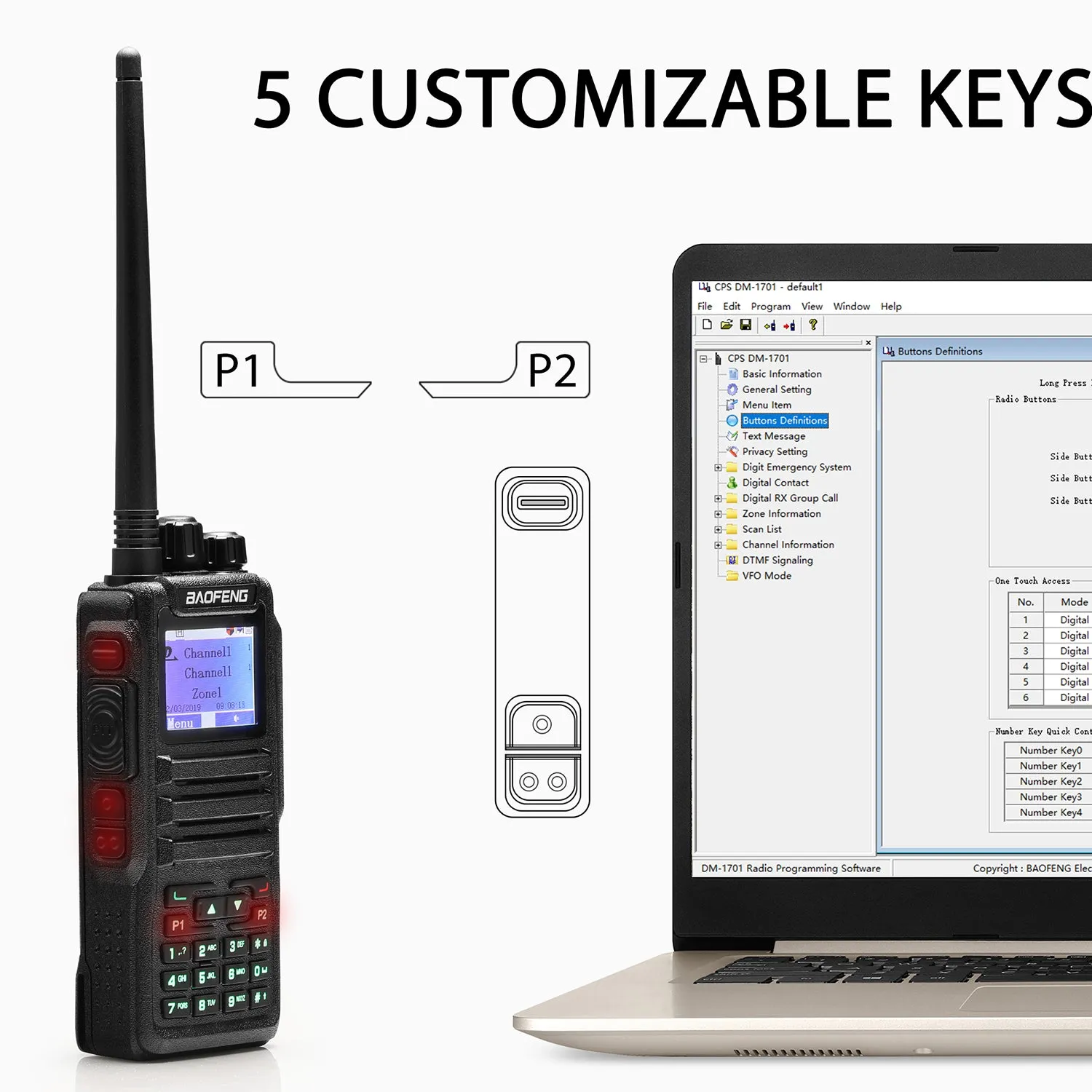

Multiple customizable keys
The DM-1701 provides five user-defined keys based on user habits. Three side keys are designed as default setting, P1&P2 are blank setting, users can change their setting by PC programming.

SMS Function
This product supports DMR data function, and allows sending and receiving messages; the maximum length of each message is 144 characters and less than 50 lines.

Miltary Quality DMR

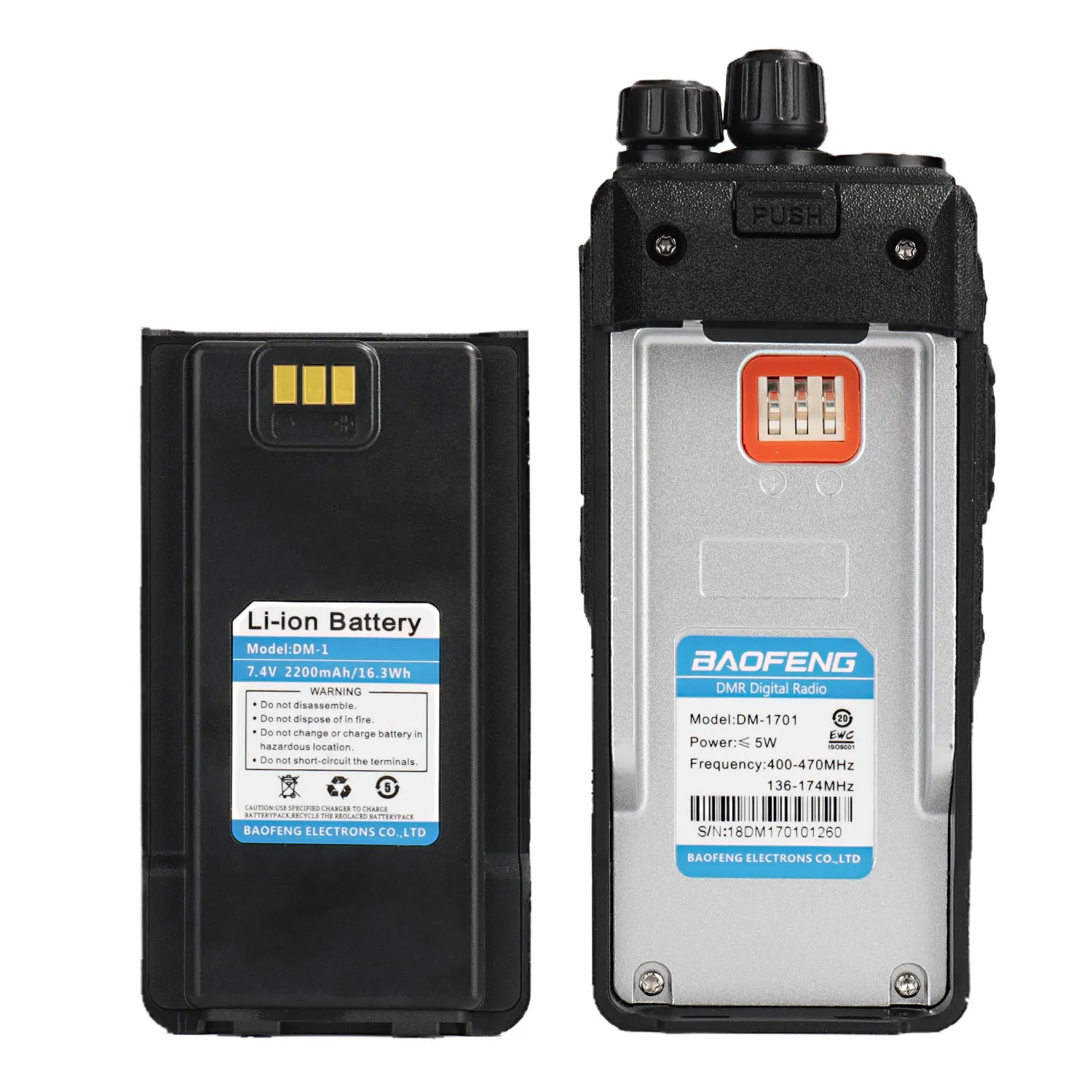

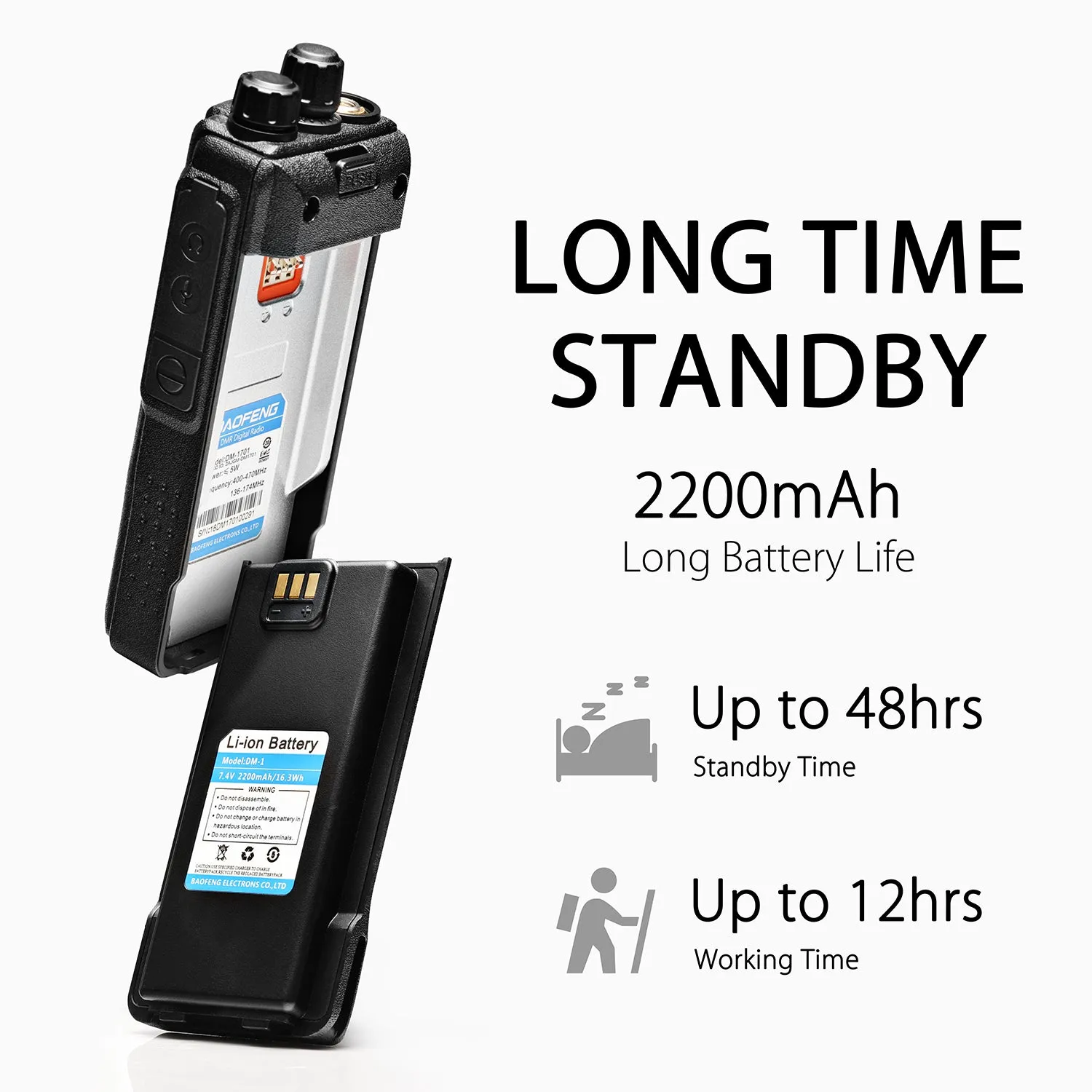

Design for both commercial and amateur usage, the DM-1701 has high quality housing, strong spring belt clip makes it more portable. The 2200mAh Li-ion battery has endurance for 48 hours. Equipped with original baofeng or radioddity SMA-F antenna, its talking range can be up to 3-10 km (1.8-6.2 miles) under most circumstances.
　

❗⚠100% Satisfaction Guaranteed for BAOFENG DM-1701 DMR sold by Radioddity. Purchased from other sellers will not get the same high-quality BAOFENG DM-1701 DMR and customer service*.


Specifications:
1. Frequency Range: 136-174MHz/ UHF:400-480MHz
2. Output Power: 1W/2W/5W
3. Zones: 250 ( allow 64 channels per zone)
4. Scan List: 250
5. Digital emergency alarm: 32
6. SMS function
7. High fidelity quality
8. Manual Programmable
9. High and low power selection
10. CTCSS / CDCSS and tail cancellation
11. Digital mode supports repeater
12. Channel Spacing: 25KHz(Wide Band), 20KHz, 12.5KHz(Narrow Band)
13. Phase-locked Step: 2.5K/5K/6.25K~50K
　

Note: About volume control level, currently user can only disable all tone via PC programming or turn it off by keypad: MENU- Utilities-Radio Settings-Tones/Alerts-keypad Tones-Turn On/Turn Off
　

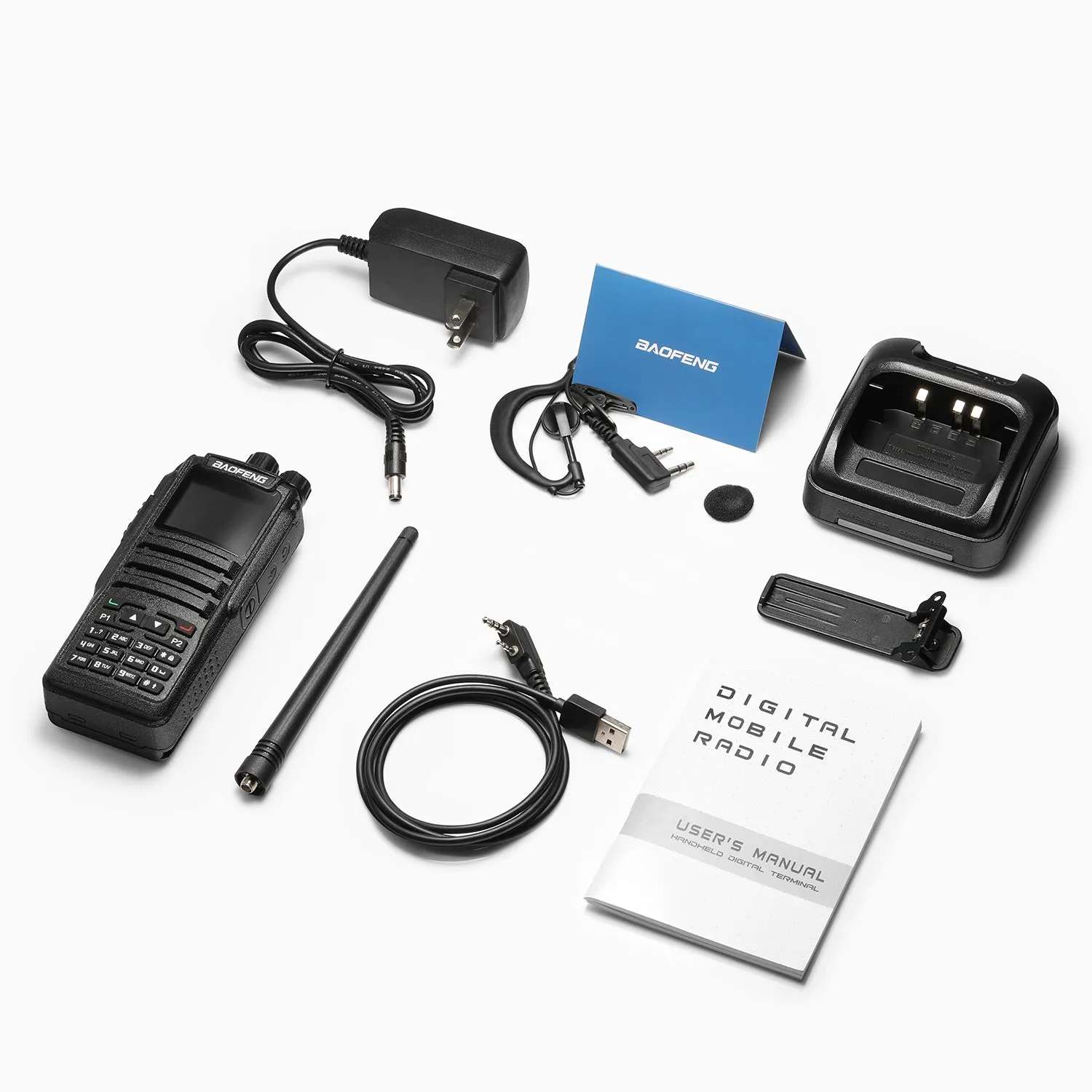

Package Content:
1x Baofeng DM-1701 DMR
1x 2200mAh Li-ion Battery
1x Belt Clip
1x Dual Band SMA-F Antenna
1x Desktop Charger
1x User Manual
1x PTT Earpiece
1x Wrist Strip
1 x USB Programming Cable
